Power Voltage: AC100V-240V 50/60HZ
Power Consumption: 935W
Light Source: 800W LED
Color temperature: 7500±500K
Light source lifespan: 20000 hours*Data provided by the light source supplier
Beam angle: 6°-50°
Outcoating diameter: 140mm
PAN scan: 540°
TILT scan: 270°
Power Voltage: AC100V-240V 50/60HZ
Power Consumption: 935W
Light Source: 800W LED
Color temperature: 7500±500K
Light source lifespan: 20000 hours*Data provided by the light source supplier
Beam angle: 6°-50°
Outcoating diameter: 140mm
PAN scan: 540°
TILT scan: 270°
Product Details
Technical Parameters
| Power Voltage | AC100V-240V50/60HZ |
| Power Consumption | 935W |
| Light Source | 800WLED |
| Color temperature | 7500±500K |
| Light source lifespan | 20000 hours*Data provided by the light source supplier |
| Beam angle | 6°-50° |
| Outcoating diameter | 140mm |
| PAN scan | 540° |
| TILT scan | 270° |
| Color wheel | Linear CMY color mixing system;Linear CTO 2500K-6500K;1 Color Wheel 6 colors, open white |
| Gobo Wheel | 1 Static Gobo Wheel 6 gobos, plus open |
| Effect Wheel | 1 effect wheel with outstanding wave effects |
| Frost | Independent frost effect |
| Strobe | 1-25Hz, various strobe effects |
| Dimming | 0-100% smooth dimming; Outstrobe effect with variable speed |
| Prism | 1x4-facet prism, bidirectional rotating with variable speed |
| Power connection | Waterproof power input/output/ |
| DMX connection | 3-core/5-core waterproof DMX signal input/output |
| Working temperature | -10℃~+40℃ |
| Dimension | 716*410*277mm |
| Weight | 28kg |
| Protection Rating | IP66 |
| Shell | All-magnesium alloy body,baked paint |
| Control Mode | DMX512, Master-Slave, Auto Run,RDM |
| DMX Channel | 37CH |
| Display | 2.8-inch Display Screen with Automatic Flip Function |

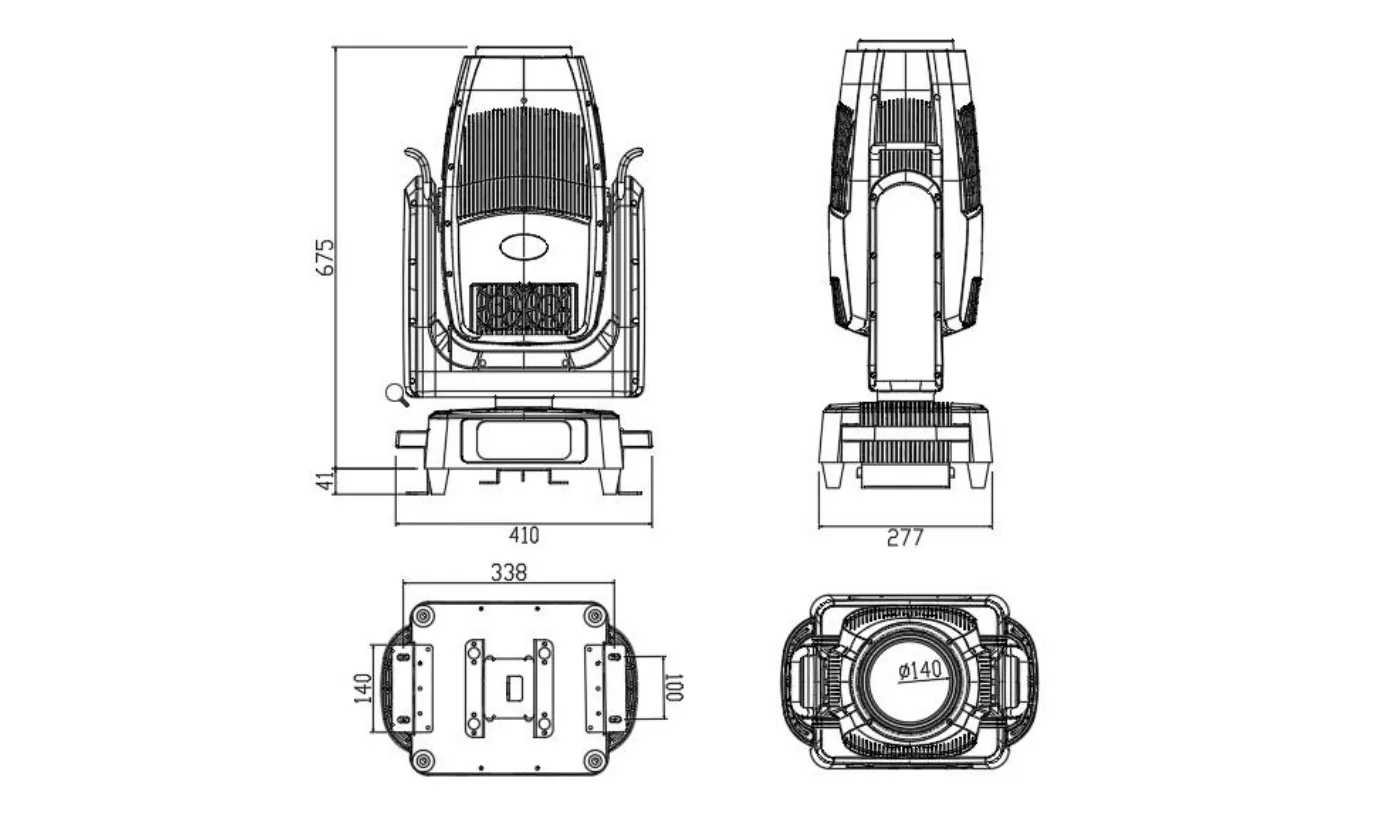

Product Dimension
|
|

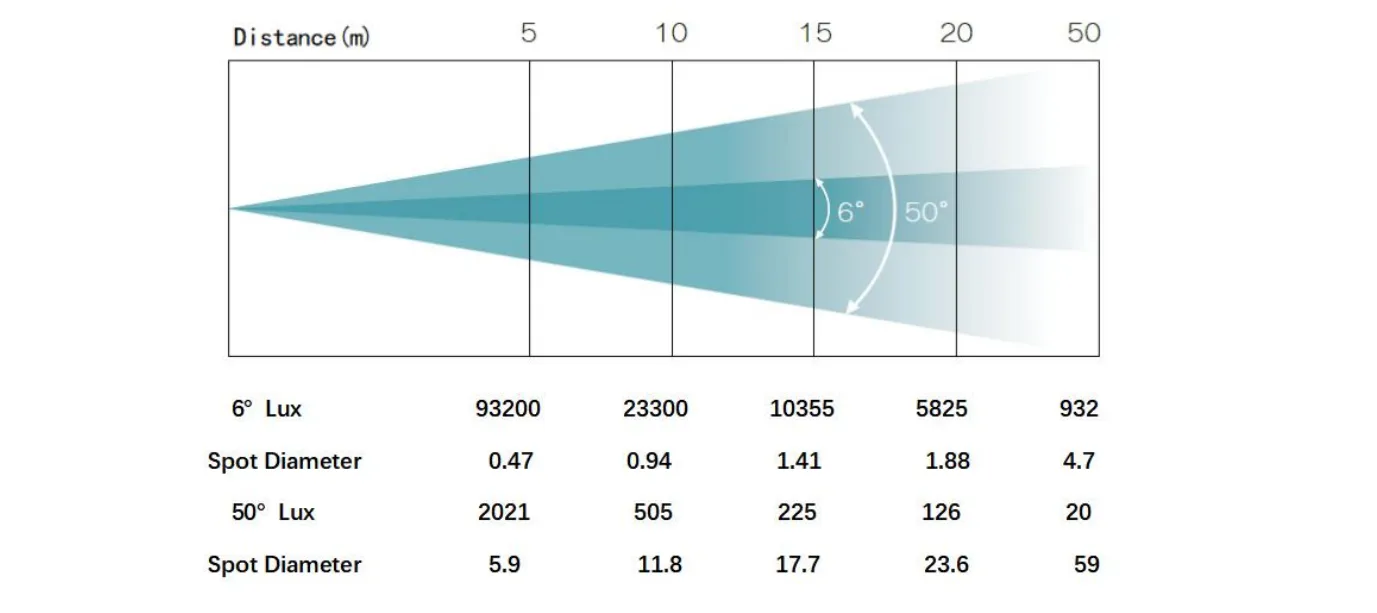

Photometric Diagram
|
|

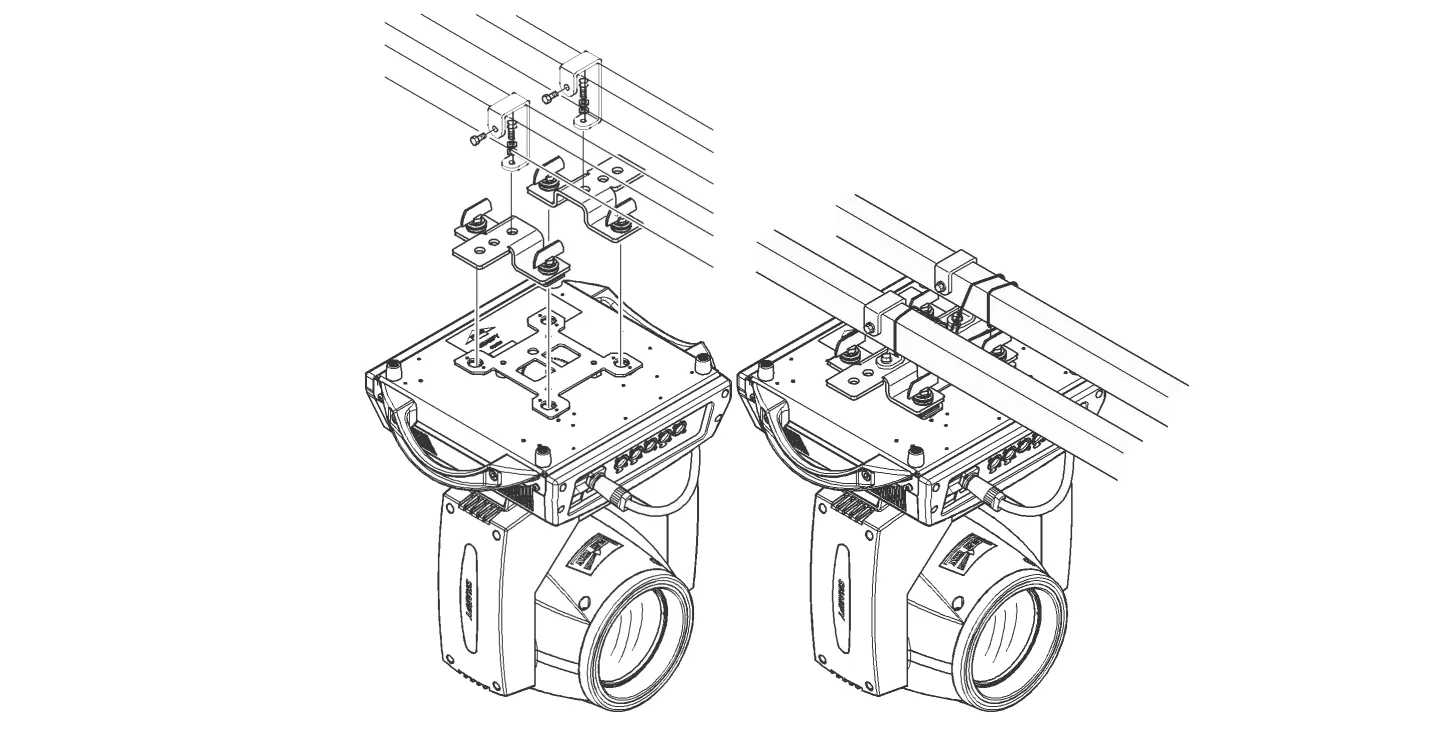

Lighting installation
1. The installation of the equipment should be carried out by professionals,and the area where the lighting fixtures may be accessible to unauthorized personnel should be kept away. Do not stand directly below the lighting fixtures when assembling, disassembling, or repairing them.
2. When installing lighting fixtures, make sure they are securely installed to prevent them from shaking and falling off during operation.Also,ensure that the structure used to fix the lighting fixtures can support 10 times the weight of the fixtures without deforming. At the same time as installing the lighting fixtures, use a safety rope that can support 12 times the weight of the fixtures to ensure that the fixtures will not fall off if the clamp fails.
3. This lamp is fully operable in three different installation positions: suspended, hanging, or placed on a flat horizontal surface. Always use and install the attached safety rope as a safety measure to prevent the lamp from being accidentally damaged or causing personal injury when the fixture fails.
Technical Parameters
| Power Voltage | AC100V-240V50/60HZ |
| Power Consumption | 935W |
| Light Source | 800WLED |
| Color temperature | 7500±500K |
| Light source lifespan | 20000 hours*Data provided by the light source supplier |
| Beam angle | 6°-50° |
| Outcoating diameter | 140mm |
| PAN scan | 540° |
| TILT scan | 270° |
| Color wheel | Linear CMY color mixing system;Linear CTO 2500K-6500K;1 Color Wheel 6 colors, open white |
| Gobo Wheel | 1 Static Gobo Wheel 6 gobos, plus open |
| Effect Wheel | 1 effect wheel with outstanding wave effects |
| Frost | Independent frost effect |
| Strobe | 1-25Hz, various strobe effects |
| Dimming | 0-100% smooth dimming; Outstrobe effect with variable speed |
| Prism | 1x4-facet prism, bidirectional rotating with variable speed |
| Power connection | Waterproof power input/output/ |
| DMX connection | 3-core/5-core waterproof DMX signal input/output |
| Working temperature | -10℃~+40℃ |
| Dimension | 716*410*277mm |
| Weight | 28kg |
| Protection Rating | IP66 |
| Shell | All-magnesium alloy body,baked paint |
| Control Mode | DMX512, Master-Slave, Auto Run,RDM |
| DMX Channel | 37CH |
| Display | 2.8-inch Display Screen with Automatic Flip Function |
Product Dimension
|
|
Photometric Diagram
|
|
Lighting installation
1. The installation of the equipment should be carried out by professionals,and the area where the lighting fixtures may be accessible to unauthorized personnel should be kept away. Do not stand directly below the lighting fixtures when assembling, disassembling, or repairing them.
2. When installing lighting fixtures, make sure they are securely installed to prevent them from shaking and falling off during operation.Also,ensure that the structure used to fix the lighting fixtures can support 10 times the weight of the fixtures without deforming. At the same time as installing the lighting fixtures, use a safety rope that can support 12 times the weight of the fixtures to ensure that the fixtures will not fall off if the clamp fails.
3. This lamp is fully operable in three different installation positions: suspended, hanging, or placed on a flat horizontal surface. Always use and install the attached safety rope as a safety measure to prevent the lamp from being accidentally damaged or causing personal injury when the fixture fails.
