ColorONE Color Strike M is a high-output 1400W IP65 moving head strobe featuring 392 white LEDs and 784 RGB 3-in-1 LEDs with independent pixel-matrix control. With a 110° beam angle, 63,880 lm full-output rating, 8-channel to 97-channel DMX modes, Art-Net and RDM support, it is designed for concerts, festivals, touring productions and large-scale outdoor events.
ColorONE Color Strike M is a high-output 1400W IP65 moving head strobe featuring 392 white LEDs and 784 RGB 3-in-1 LEDs with independent pixel-matrix control. With a 110° beam angle, 63,880 lm full-output rating, 8-channel to 97-channel DMX modes, Art-Net and RDM support, it is designed for concerts, festivals, touring productions and large-scale outdoor events.
Product Details

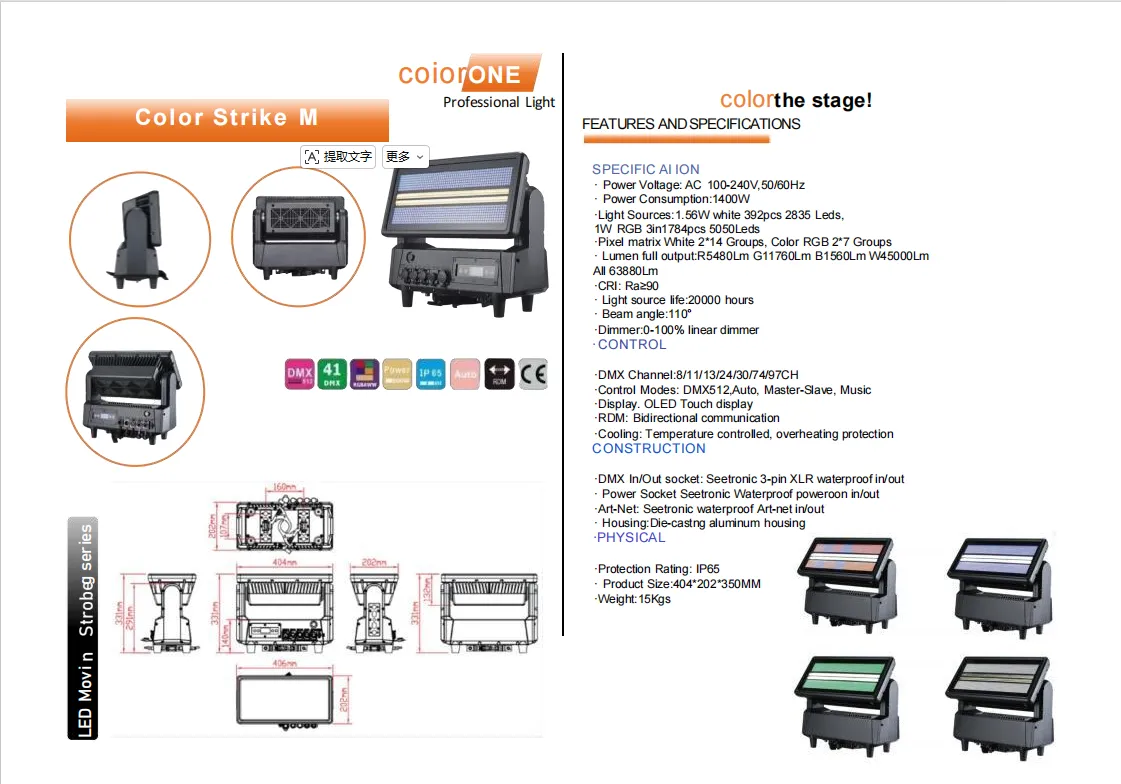

Technical Parameters
| Specification | Details |
| Product Name | Color Strike M IP Moving Head Strobe |
| Model | Color Strike M |
| Product Type | IP65 Moving Strobe |
| Light Source | 392 *1.5W 2835 White LEDs |
| 784* 1.5W 5050 RGB 3 in1 LEDs | |
| White Pixel Matrix | 2*14 Groups |
| RGB Pixel Martix | 2 * 7 Groups |
| Power Consumption | 1400 W |
| Input Voltage | AC 100–240V |
| Frequency | 50–60Hz |
| Dimming | 0–100% Linear Dimming |
| Total Luminous lux | 63880lm |
| CRI | Ra >90 |
| Frost | Optional DMX Frost Function |
| Strobe | Independent Electronic Strobe |
| Control Modes | DMX512, Auto, Master-Slave, Sound |
| DMX Channels | 8CH / 11CH/13CH/24CH/30CH/74CH/97CH |
| Display | OLED Touch Display |
| Cooling | Temperature- Controlled Cooling With overheatinf Protection |
| IP Rating | IP65 |
| Product Dimensions | 40.4 × 202 × 350 cm |
| Net Weight | 15 kg |
Control System
Color Strike M
1400W IP65 Moving Head Strobe with RGB & White Pixel Effects
Color Strike M combines powerful white output, dynamic RGB pixel effects and moving-head flexibility in a rugged IP65-rated fixture designed for demanding stage and outdoor productions.
The fixture integrates 392 × 1.56W white 2835 LEDs with 784 × 1W RGB 3-in-1 5050 LEDs, creating a powerful dual-light-source system for high-impact strobe and color effects.
The LED system is arranged into dedicated pixel matrices, with 2 × 14 white groups and 2 × 7 RGB groups, allowing lighting designers to create segmented effects, dynamic color patterns and rhythmic visual sequences.
With a 110° beam angle and a full-output luminous flux of up to 63,880 lm, Color Strike M is designed to provide broad, high-impact coverage for large stages, outdoor productions and entertainment environments.
The fixture offers 0–100% linear dimming for smooth intensity control and supports multiple DMX personalities from 8CH to 97CH, giving programmers different levels of control according to production requirements.
For professional system integration, Color Strike M supports DMX512, Art-Net and RDM, including bidirectional RDM communication. Waterproof Seetronic DMX, Art-Net and power connections provide reliable connectivity for touring and outdoor applications.
Its die-cast aluminum housing, IP65 protection and temperature-controlled cooling with overheating protection make Color Strike M suitable for demanding outdoor environments.
From concerts and festivals to touring productions, large-scale events and entertainment venues, Color Strike M delivers powerful output, dynamic pixel effects and professional control in a compact moving-head strobe fixture.
Powerful Output. Dynamic Pixels. Built for the Elements.
Construction & Interfaces
- DMX In/Out: Seetronic 3-pin XLR Waterproof Input & Output
- Power Connector: Seetronic Waterproof PowerCON In/Out
- Art-Net Port: Seetronic Waterproof Art-Net In/Out
- Housing: Die-cast Aluminum Housing
Technical Parameters
| Specification | Details |
| Product Name | Color Strike M IP Moving Head Strobe |
| Model | Color Strike M |
| Product Type | IP65 Moving Strobe |
| Light Source | 392 *1.5W 2835 White LEDs |
| 784* 1.5W 5050 RGB 3 in1 LEDs | |
| White Pixel Matrix | 2*14 Groups |
| RGB Pixel Martix | 2 * 7 Groups |
| Power Consumption | 1400 W |
| Input Voltage | AC 100–240V |
| Frequency | 50–60Hz |
| Dimming | 0–100% Linear Dimming |
| Total Luminous lux | 63880lm |
| CRI | Ra >90 |
| Frost | Optional DMX Frost Function |
| Strobe | Independent Electronic Strobe |
| Control Modes | DMX512, Auto, Master-Slave, Sound |
| DMX Channels | 8CH / 11CH/13CH/24CH/30CH/74CH/97CH |
| Display | OLED Touch Display |
| Cooling | Temperature- Controlled Cooling With overheatinf Protection |
| IP Rating | IP65 |
| Product Dimensions | 40.4 × 202 × 350 cm |
| Net Weight | 15 kg |
Control System
Color Strike M
1400W IP65 Moving Head Strobe with RGB & White Pixel Effects
Color Strike M combines powerful white output, dynamic RGB pixel effects and moving-head flexibility in a rugged IP65-rated fixture designed for demanding stage and outdoor productions.
The fixture integrates 392 × 1.56W white 2835 LEDs with 784 × 1W RGB 3-in-1 5050 LEDs, creating a powerful dual-light-source system for high-impact strobe and color effects.
The LED system is arranged into dedicated pixel matrices, with 2 × 14 white groups and 2 × 7 RGB groups, allowing lighting designers to create segmented effects, dynamic color patterns and rhythmic visual sequences.
With a 110° beam angle and a full-output luminous flux of up to 63,880 lm, Color Strike M is designed to provide broad, high-impact coverage for large stages, outdoor productions and entertainment environments.
The fixture offers 0–100% linear dimming for smooth intensity control and supports multiple DMX personalities from 8CH to 97CH, giving programmers different levels of control according to production requirements.
For professional system integration, Color Strike M supports DMX512, Art-Net and RDM, including bidirectional RDM communication. Waterproof Seetronic DMX, Art-Net and power connections provide reliable connectivity for touring and outdoor applications.
Its die-cast aluminum housing, IP65 protection and temperature-controlled cooling with overheating protection make Color Strike M suitable for demanding outdoor environments.
From concerts and festivals to touring productions, large-scale events and entertainment venues, Color Strike M delivers powerful output, dynamic pixel effects and professional control in a compact moving-head strobe fixture.
Powerful Output. Dynamic Pixels. Built for the Elements.
Construction & Interfaces
- DMX In/Out: Seetronic 3-pin XLR Waterproof Input & Output
- Power Connector: Seetronic Waterproof PowerCON In/Out
- Art-Net Port: Seetronic Waterproof Art-Net In/Out
- Housing: Die-cast Aluminum Housing
