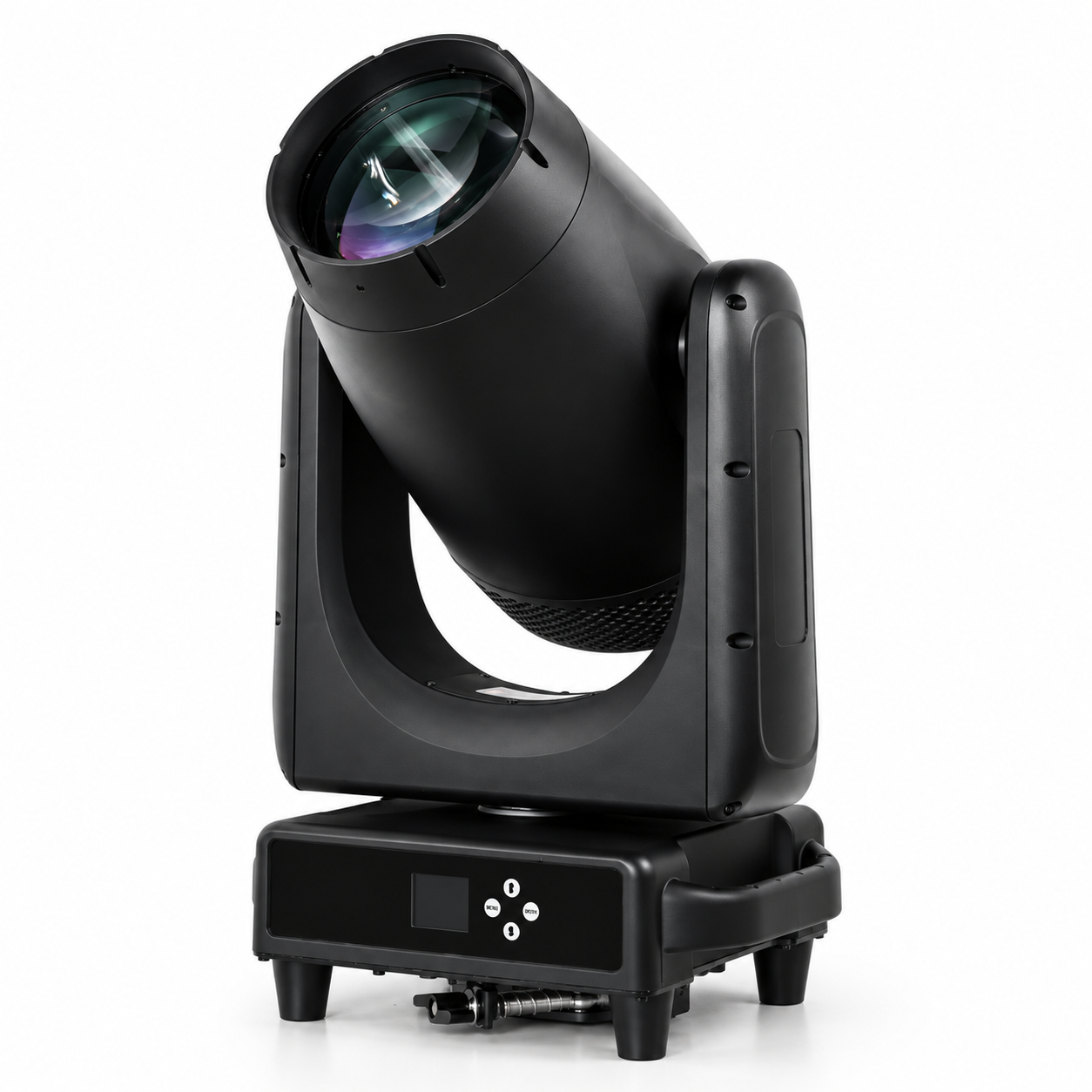

ColorONE Aero Beam IP is a professional beam moving head designed for powerful aerial effects, long-range beam projection and demanding stage applications.
Featuring an 800W lighting system with an original OSRAM 371W or USHIO 420W light source, Aero Beam IP delivers a highly concentrated 2° parallel beam through its large 156mm optical lens. Its precision optical system, high-speed three-phase motors and 16-bit Pan/Tilt movement provide strong beam definition, fast response and accurate positioning.
The fixture combines a 14-color fixed color wheel, 14 static gobos, dual prism effects, independent seven-color effects, frost and high-speed strobe functions to create dynamic aerial effects for concerts, festivals, touring productions, clubs and large-scale entertainment applications.
Constructed from lightweight aerospace-grade magnesium alloy, Aero Beam IP delivers a refined balance of power, durability and weight for professional lighting systems.
ColorONE Aero Beam IP is a professional beam moving head designed for powerful aerial effects, long-range beam projection and demanding stage applications.
Featuring an 800W lighting system with an original OSRAM 371W or USHIO 420W light source, Aero Beam IP delivers a highly concentrated 2° parallel beam through its large 156mm optical lens. Its precision optical system, high-speed three-phase motors and 16-bit Pan/Tilt movement provide strong beam definition, fast response and accurate positioning.
The fixture combines a 14-color fixed color wheel, 14 static gobos, dual prism effects, independent seven-color effects, frost and high-speed strobe functions to create dynamic aerial effects for concerts, festivals, touring productions, clubs and large-scale entertainment applications.
Constructed from lightweight aerospace-grade magnesium alloy, Aero Beam IP delivers a refined balance of power, durability and weight for professional lighting systems.
Technical Parameters
| Specification | Details |
| Product Name | Aero Beam IP |
| Model | Aero Beam IP |
| Product Type | IP65 BEAM Moving Head |
| Rated Voltage | AC 100-240V,50/60Hz |
| Power Consumption | 800W |
| Light Source | Osram 371/Ushio 420 |
| Light Source life | 3000h/6000h |
| Color Temperature | 6800k-7000k |
| Beam angle | 2° |
| Lens size | 160mm |
| Dimming | 0–100% Linear Dimming |
| Strobe | pulse strobe,1-20 flashes/sec |
| ColorWheel | 14 colors+ Open |
| Color Effects | Half color, Linear Color Change, Bidrectional Variable-Speed Rainbow |
| Static Gobo Wheel | 14 Gobos |
| Prism 1 | 8-Facet Prism |
| Prism 2 | 8+8+8 Facet Prism |
| Prism Function | Dual Prism Overlay |
| Foucs | Electronic Linear HD Foucs |
| Frost | Frost Effect |
| Pan | 540° |
| Tilt | 370° |
| DMX Channels | 16CH |
| Net Weight | 17.3KG |
| Carton Size | 600 *400 *400mm |
Applications
Aero Beam IP is designed for:
Concerts & Live Events
Touring Productions
Festivals & Outdoor Performances
Large-Scale Stage Productions
Clubs & Nightlife
Entertainment Venues
TV & Show Productions
Rental & Production Companies
Professional Stage Lighting Systems
Technical Parameters
| Specification | Details |
| Product Name | Aero Beam IP |
| Model | Aero Beam IP |
| Product Type | IP65 BEAM Moving Head |
| Rated Voltage | AC 100-240V,50/60Hz |
| Power Consumption | 800W |
| Light Source | Osram 371/Ushio 420 |
| Light Source life | 3000h/6000h |
| Color Temperature | 6800k-7000k |
| Beam angle | 2° |
| Lens size | 160mm |
| Dimming | 0–100% Linear Dimming |
| Strobe | pulse strobe,1-20 flashes/sec |
| ColorWheel | 14 colors+ Open |
| Color Effects | Half color, Linear Color Change, Bidrectional Variable-Speed Rainbow |
| Static Gobo Wheel | 14 Gobos |
| Prism 1 | 8-Facet Prism |
| Prism 2 | 8+8+8 Facet Prism |
| Prism Function | Dual Prism Overlay |
| Foucs | Electronic Linear HD Foucs |
| Frost | Frost Effect |
| Pan | 540° |
| Tilt | 370° |
| DMX Channels | 16CH |
| Net Weight | 17.3KG |
| Carton Size | 600 *400 *400mm |
Applications
Aero Beam IP is designed for:
Concerts & Live Events
Touring Productions
Festivals & Outdoor Performances
Large-Scale Stage Productions
Clubs & Nightlife
Entertainment Venues
TV & Show Productions
Rental & Production Companies
Professional Stage Lighting Systems
