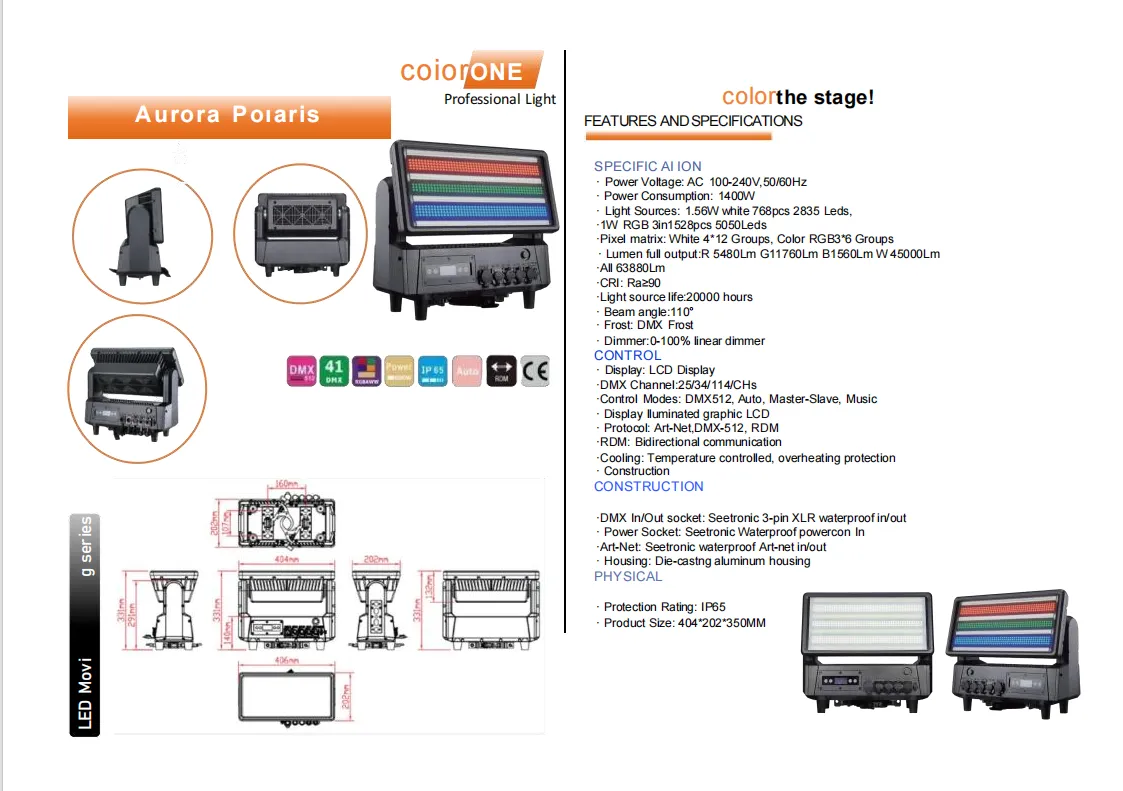

Specifications

Power Input Voltage: AC100–240V, 50/60Hz

Power Consumption: 1400W

Light Sources:

768 pcs × 1.56W White 2835 LEDs

528 pcs × 1W RGB 3-in-1 5050 LEDs

Pixel Matrix: White – 4×12 Groups; RGB Color – 3×6 Groups

Full Output Lumen: R 5480 lm, G 11760 lm, B 1560 lm, W 45000 lm

Total Lumen Output: 63880 lm

CRI: Ra ≥90

LED Lifespan: 20000 hours

Beam Angle: 110°

Frost Effect: DMX-controllable Frost

Dimming: 0–100% Linear Dimming

Control System

Display: Backlit Graphic LCD Screen

DMX Channels: 25 / 34 / 114 CH

Control Modes: DMX512, Auto Run, Master-Slave, Sound Active (Music Trigger)

Supported Protocols: Art-Net, DMX-512, RDM

RDM Function: Bidirectional Data Communication

Cooling System: Temperature-controlled Fan Cooling with Overheat Protection

Construction & Interfaces

DMX In/Out: Seetronic 3-pin XLR Waterproof Input & Output Sockets

Power Connector: Seetronic Waterproof PowerCON Input

Art-Net Port: Seetronic Waterproof Art-Net In/Out

Housing: Die-cast Aluminum Chassis

Physical Parameters

IP Rating: IP65

Product Dimensions: 404 × 202 × 350 mm
